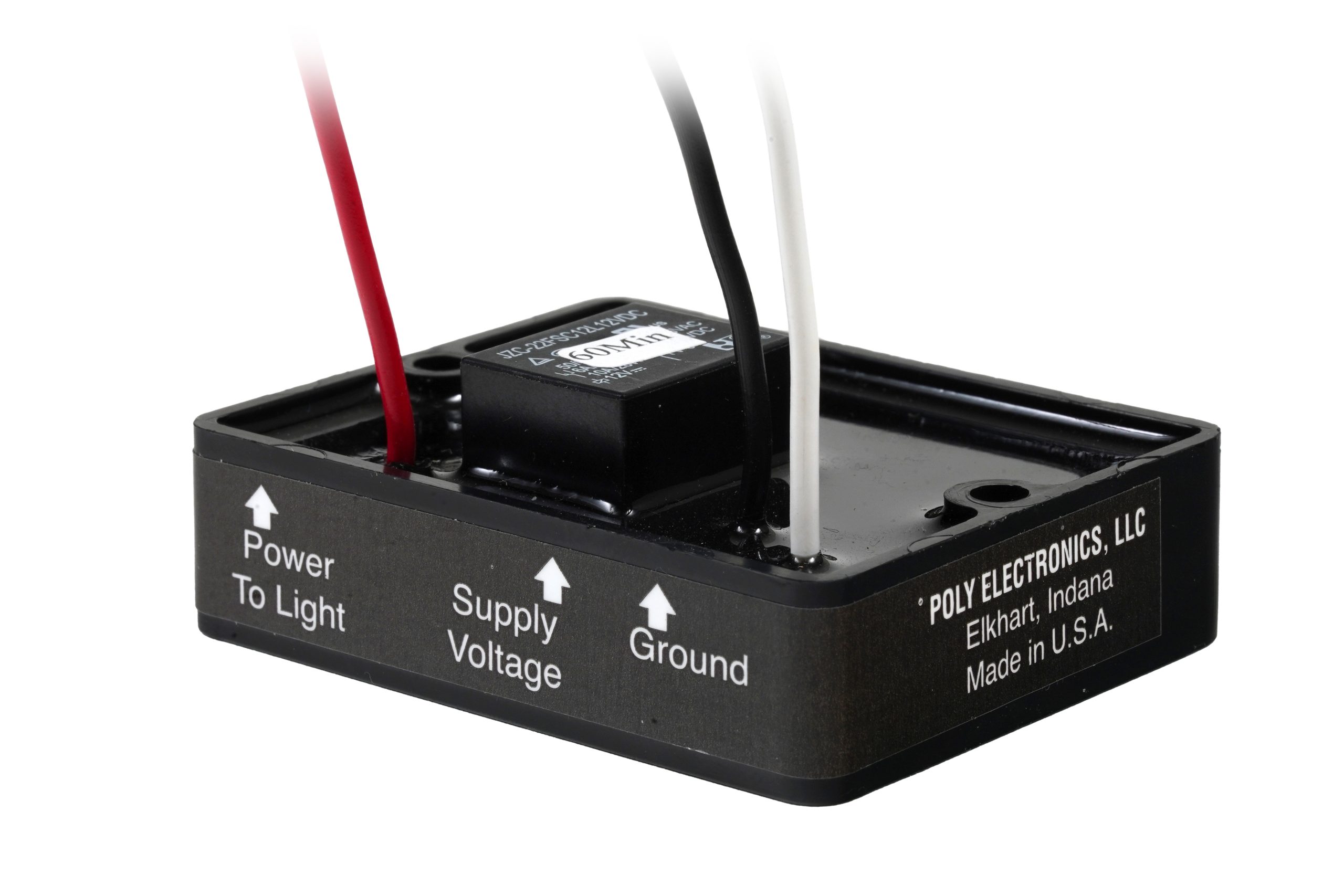

DL-10 – Dome Light Timer – 10Amp – 2509
• Delay Off Timer for Dome/Cargo Lights
• 10 Amp – 12 Volt
• 10, 20, 30, 60 Minute delay options (set at factory)
• Durable Waterproof Ipx6 Tundra To Tropics Operation
• Easy 3-Wire Install No Nonsense Operation
• Turn Lights On/Off From Multiple Switches
Prevent overnight complete battery discharge due to open doors or lights left on.
The cargo dome light time delay module, DL-10 (10 Amp) is a timer used in series with a 12 VCD dome light on a cargo body and your desired switching method.
When the switch controlling the dome is turned on, or door is left ajar, the timer will turn on the dome light for a period of time (preset at the factory) then go off.
Specifications
| DL-10 | Part: 2509 |
|---|---|
| Nominal Supply Voltage | 12 Volts |
| Max Continuous Carry | 10 Amps |
| Operating Temperature | -40ºF – 185ºF |
| Delay | 10,15,20,30,60 Min |
| Dimensions (L x W x H) | 2.5 x 2″ x 1″ |
| Motion Activation | No |

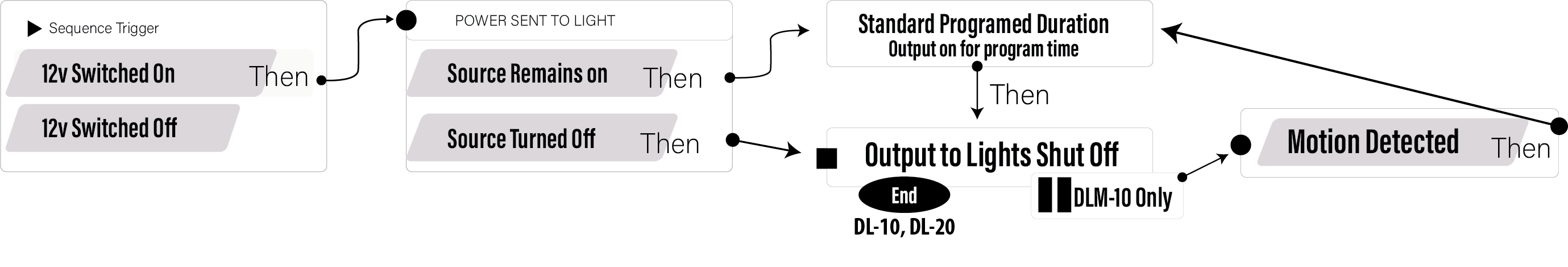

Operation Overview
